The all new SL-360X is easier to use than any other type chain feeder on the market today. It is also the most innovative, with 6 unique features you won’t find on any other bale feeder that makes it easier to use, more versatile, and saves your precious time. Recommended for farms feeding 50-800 bales each year, the self-loading 3-point linkage mounted feeder is suitable for feeding out all but the tightest of round bales and baled silage, loose silage, maize, fodder-beet and more.

Benefits

The Snaplox auto connect/disconnect hands-free loading system

Saves you time, saves you having to tug on a rope to disconnect, and saves you from twisting your back. It’s fail-safe, fast and operates naturally.


Toughest chain and floor bars on the market

Is bullet-proof and lasts the entire life span of the feeder. Super strong 2 x 12,000 lb roller chains, with tough 40mm x 40mm zinc-plated bars. Bars are bolted to the chain, a stronger and more easily replaceable system.


Tough new Thermoform fully enclosed polyethylene floor

With covered drive shafts which eliminate wrapping. It’s non corrosive, impervious to UV, slippery, easily repairable and very shock resistant. Fully enclosed – no wastage of expensive feed. Long bed can take 5’ long bales.


Low maintenance

Just 4 grease nipples is all it takes to maintain the SL-360X, that’s because instead of bushes we use longer lasting, fully sealed block bearings, mounted outboard to keep them clean and free of damage from acidic silage juices. We’ve also added bearing covers which prevent debris from causing damage.


Flexible design

Do you operate in barns, outdoors, on steep country, with a tele-loader, supplement with loose silage or fodder beet? With the flexible configuration of the SL-360X, your new feeder will suit all of the above. No other feeder allows this level of flexibility which gives you peace of mind, should you want to change the way you operate. You won’t need to change your feeder.

Features

  • Auto connect/disconnect hands-free loading system.
  • Floor bars are 4-5 times stronger.

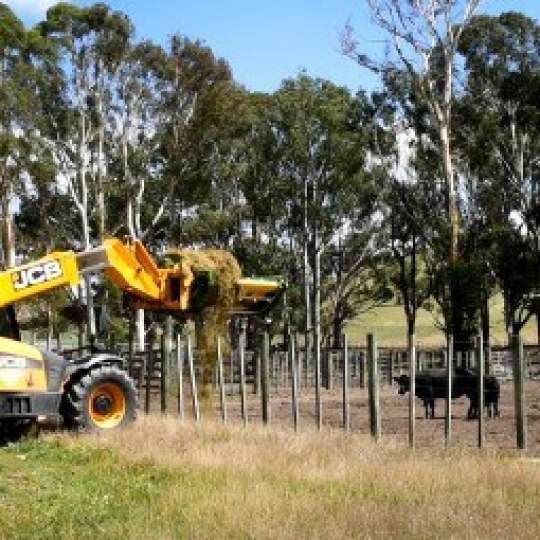

  • Loader mounts.
  • Added versatility.
  • Covered shafts.
  • Sideshift.
  • Tynes that pierce the bale.
  • Toughest chain on the market.
  • Thermoform floor.
  • Extra low cradle.
  • Dual latches.
  • Connect either end.
  • 6 tooth sprockets.
  • Protected drive.
  • Single level control.

Specifications

  • Bale size round: 4’ X 4’ – 6’ X 5’
  • Bale size square: requires optional side bars
  • Bale weight: up to 1250kg
  • Unit weight: 500kg
  • Tractor size: 60hp +
  • Capacity: 1 bale
  • Hydraulics required: 1 X double-acting, 30-60 litres/min, 2250-3000 psi
  • Loading: Self-loading
  • Size (L x W x H): 2090 x 2048 x 1043mm

Optional Extras

  • Front fence
  • Loader/Telehandler mounts
  • Square bale attachment
  • Hydraulic toplink
