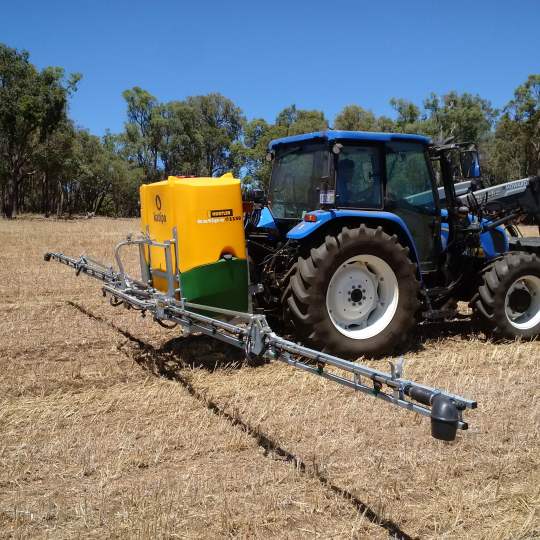

1111katipo

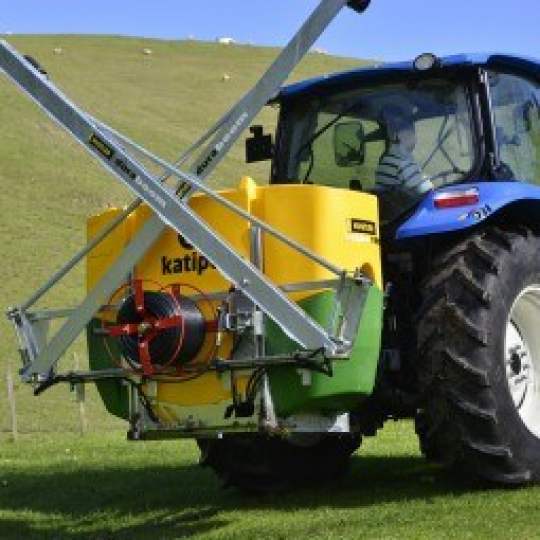

Katipo890 5

Benefits

COMPACT AND BUILT TO LAST

Careful attention to detail, smart chassis/tank/pump integration has allowed Hustler to produce the toughest and most compact sprayer available today that no longer needs to be parked on a pallet. And has a built-in SkidPlateTM protecting the vital parts from common obstacles faced when spraying.

EASY TO USE

Katipo utilises space wisely with an Ultra-low profile design. Filling from on the ground is quick, safe and easy and with the spill catcher, no longer do you have chemicals down your front. A unique CoupleUpTM system makes connecting to filling stations or filling out of a creek with the Katipo pump a snap. And everything you need is handy at the left hand side.

ULTIMATE AGITATION

Utilising the latest computer generated flow simulation we’ve created the perfect flow of liquid within the tank and combined with our new optional MixMaxTM technology you can be assured that your solution is mixed, and stays mixed.

FUNCTIONAL

Katipo is loaded with practical features that help you get the job done quicker such as quicker tank emptying, a deep sump that lets you spray on steep terrain, a ViziGaugeTM that is visible from the tractor seat and the ground, optional QuickFlushTM kit that lets you clean the sprayer in less than a minute, a toolbox that is quickly accessible with plenty of room for spare nozzles, filters and the controller when you park it in the shed.

MODULAR DESIGN

Modular Design Katipo is modular and can have optional time savers fitted as and when you like or your budget fits. The SlickFitTM spray valving system, lets you choose how you’d prefer to control your new Katipo.

Features

  • Ultra low so you can operate the sprayer from on the ground
  • MixMax agitator gives grunty agitation for thick products, no foaming for foamy sprays, and acts as a tank rinsing nozzle (standard on Katipo 890 and Katipo 1150, optional for Katipo 680)
  • CoupleUp filling system
  • Latest CAD flow simulation technology to create the perfect mix of fluid
  • 6/8/12 metre DuraBoom
  • Adjustable valve mount
  • Floating ball tube gauge makes it easy to read the calibrated ViziGauge
  • Unique chassis design - compact and built to last, the most compact sprayer available today
  • ISO standard double clevis CAT 1 and CAT 2 linkage mounts
  • Built in SkidPlate protects the vital parts from damage
  • Tank drain operates form the top of the tank, saves climbing underneath to empty and reduces clean up time
  • Deep sump so that you can spray on stepp terrain
  • Toolbox and wash box
  • 3 section controls
  • New model 110l/min flow Comet pump
  • Large opening with spill catcher

Specifications

Katipo 680
Katipo 890
Katipo 1150

TANK SIZE

680L

890L

1150L

FLUSHING TANK

Optional 100L

Optional 100L

100L

HAND WASHING TANK

18L capacity

18L capacity

18L capacity

PUMP

110L/min rear mounted Comet pump

110L/min rear mounted Comet pump

110L/min rear mounted Comet pump

STORAGE

Built in toolbox

Built in toolbox

Built in toolbox

CONTROLS

Three section Arag controls with SlickFit, and Pressure Lock function

Three section Arag controls with SlickFit, and Pressure Lock function

Three section Arag controls with SlickFit, and Pressure Lock function

AGITATION

Recirculation. Optional MixMax agitation system

Adjustable MixMax agitation system

Adjustable MixMax agitation system

GAUGE

ViziGauge view

ViziGauge view

ViziGauge view

LID

Hingend 455mm lid with basket strainer

Hingend 455mm lid with basket strainer

Hingend 455mm lid with basket strainer

FEATURES

UtilityBar, CoupleUp tank filling system

UtilityBar, CoupleUp tank filling system

UtilityBar, CoupleUp tank filling system

BOOMS

Standard with 6 metre DuraBoom. Six other boom options to choose from

Standard with 8 metre DuraBoom. Six other boom options to choose from

10 or 12 metre fully hydraulic SonicBoom. Six other boom options to choose from

HOSE REEL

3 hose reel options to choose from: 30, 50 or 100 metres

Standard with 30m bi-directional hose reel. 2 other hose reel options to choose from: 50 or 100 metres

3 hose reel options to choose from: 30, 50 or 100 metres

BOOMLESS

3 options to choose from: SupaJet, Cassotti and FieldJet.

3 options to choose from: SupaJet, Cassotti and FieldJet.

3 options to choose from: SupaJet, Cassotti and FieldJet.

Optional Extras

  • MixMax agitator
  • StorageBox
  • Manual fold boom
  • SonicBoom
  • Boomless applicators
  • Hose reel
  • Controls
  • Foam marker
  • Remote filling hose
  • QuickFlush
  • DuraBoom (optional with Katipo 1150)
