Sys 105
Sys 104
System 10
Sys 102

Hustler’s four-in-one System 10 is the ultimate multipurpose farm tool for the smaller operator who needs to handle and feed out bales and move pallets. The heart of System 10TM is a hydraulically-controlled mounting frame, which attaches to the rear 3PTL or the front-end loader of your tractor.

Benefits

SIMPLE TO OPERATE

Fits to the back of virtually every tractor and only requires one set of double action remotes.

VERSATILE

Four machines in one. Nearly as versatile as a swissarmy knife, feed out, stack and handle bales, shift pallet, posts, and much more… all from the one unit.

PROVEN

First invented in the early 1990’s the System 10 has proven to be built to last.

OPTIONAL EQUALISER BAR

The Equaliser keeps the hands moving simultaneously. Designed for more control and safer operation.

Features

SOFT HANDS BALE HANDLER

The Hustler System 10 soft hand combo handles most size and shape of bale, even the softest wrapped bales, with amazing dexterity. The unique slim profile of the oversized ‘hands’ allows the bale to be picked up from any direction and allows close, even stacking.Bales can even be nudged over without damage. The soft hands combo is fully compatible with all proprietary frontend loaders and connects quickly and simply to the loader frame and hydraulics. Or simply attach the Soft Hands to the 3 point linkage, either way you get safe, convenient driver control.

SOFT ARM BALE TIPPER

Originated by Hustler, the soft arm combo is purpose-designed for picking up round bales in the field, transporting, and then tipping them onto their flat ends for storage. The whole sequence is hydraulically operated from the driver’s seat. Storing wrapped round bales on their flat ends is the best method, as the bales retain their shape (misshapen bales can be difficult to feed out). The extra layers of wrap on the ends provide far greater protection from the elements, from above and below.

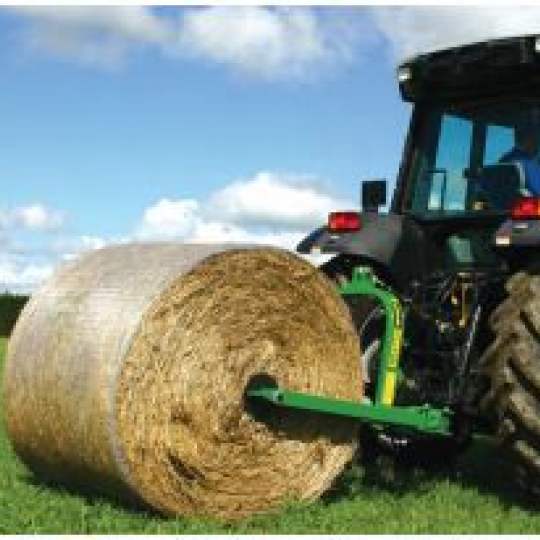

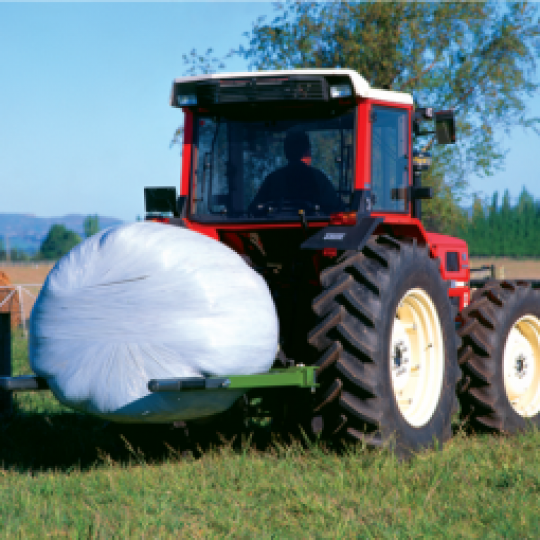

SINGLE SPIKE OR MULTI SPIKE BALE FEEDER

The single-spike and multi-spike bale feeders feature hydraulically controlled side arms that clamp the bale securely during transport. The free-wheeling ‘spike’ hubs and adjustable clamping pressure side arms allow for controlled feed out. The System 10TM single-spike bale feeder is designed primarily for handling hard centre big round bales. The System 10TM multi-spike bale feeder is designed to handle the soft centre type of big bale, with five spikes per side giving maximum hold.

PALLET FORKS

Simply by removing the combo attachments – the multi spikes, soft arms, etc – the System 10TM converts into a very handy forklift, and if you have a front-end loader attachment, you can double its versatility. Hustler has been producing tractor-mounted forklifts for industry and horticulture for more than 20 years. The System 10TM fork arms are built to the same exacting standards and carry a full 1000kg load rating.

3 POINT LINKAGE

Attaches to rear 3 point linkage, CAT 1 and CAT 2.

Specifications

  • BALE SIZES ROUND: carries and feeds all sizes
  • BALE SIZES SQUARE: carries all sizes BALE WEIGHT: up to 800kg
  • UNIT WEIGHT: 150kg approx
  • HYDRAULICS REQUIRED: 1 X double-acting, 12-60 litres/min, 2250-3000 psi

Optional Extras

  • Loader adapter
  • Equaliser bar
